KSJ - Conica 60°
La lima rotativa Forma KSJ (conica a 60°) presenta un profilo svasato con inclinazione a 60°, ideale per la svasatura di precisione, la preparazione dei fori e la sbavatura rapida di bordi lineari. La sua struttura stabile assicura smussi puliti e uniformi, garantendo un controllo ottimale della profondità di taglio anche su materiali ad alta resistenza.
Tagliente Tipo (Descrizione Taglienti e Materiali)
Composizione: codice/tagliente (esempio: 4633/4-60°)
* Nota: I taglienti tipo /2 e /5 sono fornibili su richiesta con minimo d'ordine.
Codice: 36-60°
Codice: 36-60°
Idoneo per
P
Acciaio Generico
M
Acciaio inossidabile
N
Alluminio e Leghe di alluminio
N
Rame e Leghe di Rame
K
Ghisa
H
Acciai Temprati
S
Superleghe resistenti al calore

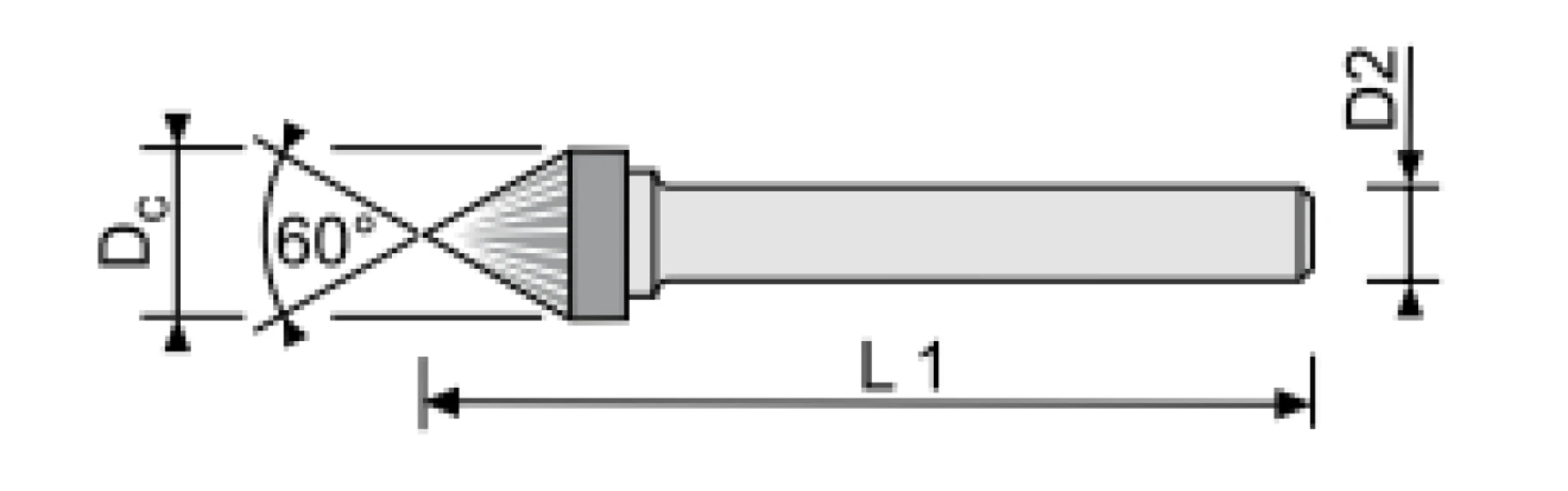

DC
OAL / L1
APMX / L2
| Cod. articolo | Descr. articlo | Tipologia | DC | OAL / L1 | DCON / D2 | α |
|---|---|---|---|---|---|---|
| 360406/1-60° | Ø4x50 ØG.6 KSJ | solid | 4.00 | 50.00 | 6.00 | 60.00 |
| 360406/3-60° | Ø4x50 ØG.6 KSJ | solid | 4.00 | 50.00 | 6.00 | 60.00 |
| 360406/4-60° | Ø4x50 ØG.6 KSJ | solid | 4.00 | 50.00 | 6.00 | 60.00 |
| 360406/6-60° | Ø4x50 ØG.6 KSJ | solid | 4.00 | 50.00 | 6.00 | 60.00 |
| 360606/1-60° | Ø6x50 ØG.6 KSJ | solid | 6.00 | 50.00 | 6.00 | 60.00 |
| 360606/3-60° | Ø6x50 ØG.6 KSJ | solid | 6.00 | 50.00 | 6.00 | 60.00 |
| 360606/4-60° | Ø6x50 ØG.6 KSJ | solid | 6.00 | 50.00 | 6.00 | 60.00 |
| 360606/6-60° | Ø6x50 ØG.6 KSJ | solid | 6.00 | 50.00 | 6.00 | 60.00 |
| 360806/1-60° | Ø8x56 ØG.6 KSJ | brazed | 8.00 | 56.00 | 6.00 | 60.00 |
| 360806/3-60° | Ø8x56 ØG.6 KSJ | brazed | 8.00 | 56.00 | 6.00 | 60.00 |
| 360806/4-60° | Ø8x56 ØG.6 KSJ | brazed | 8.00 | 56.00 | 6.00 | 60.00 |
| 360806/6-60° | Ø8x56 ØG.6 KSJ | brazed | 8.00 | 56.00 | 6.00 | 60.00 |
| 361006/1-60° | Ø10x57 ØG.6 KSJ | brazed | 10.00 | 57.00 | 6.00 | 60.00 |
| 361006/3-60° | Ø10x57 ØG.6 KSJ | brazed | 10.00 | 57.00 | 6.00 | 60.00 |
| 361006/4-60° | Ø10x57 ØG.6 KSJ | brazed | 10.00 | 57.00 | 6.00 | 60.00 |
| 361006/6-60° | Ø10x57 ØG.6 KSJ | brazed | 10.00 | 57.00 | 6.00 | 60.00 |
| 361206/1-60° | Ø12x60 ØG.6 KSJ | brazed | 12.00 | 60.00 | 6.00 | 60.00 |
| 361206/3-60° | Ø12x60 ØG.6 KSJ | brazed | 12.00 | 60.00 | 6.00 | 60.00 |
| 361206/4-60° | Ø12x60 ØG.6 KSJ | brazed | 12.00 | 60.00 | 6.00 | 60.00 |
| 361206/6-60° | Ø12x60 ØG.6 KSJ | brazed | 12.00 | 60.00 | 6.00 | 60.00 |
| 361606/1-60° | Ø16x64 ØG.6 KSJ | brazed | 16.00 | 64.00 | 6.00 | 60.00 |
| 361606/3-60° | Ø16x64 ØG.6 KSJ | brazed | 16.00 | 64.00 | 6.00 | 60.00 |
| 361606/4-60° | Ø16x64 ØG.6 KSJ | brazed | 16.00 | 64.00 | 6.00 | 60.00 |
| 361606/6-60° | Ø16x64 ØG.6 KSJ | brazed | 16.00 | 64.00 | 6.00 | 60.00 |
| 362006/1-60° | Ø20x68 ØG.6 KSJ | brazed | 20.00 | 68.00 | 6.00 | 60.00 |
| 362006/3-60° | Ø20x68 ØG.6 KSJ | brazed | 20.00 | 68.00 | 6.00 | 60.00 |
| 362006/4-60° | Ø20x68 ØG.6 KSJ | brazed | 20.00 | 68.00 | 6.00 | 60.00 |
| 362006/6-60° | Ø20x68 ØG.6 KSJ | brazed | 20.00 | 68.00 | 6.00 | 60.00 |
| 362008/1-60° | Ø20x68 ØG.8 KSJ | brazed | 20.00 | 68.00 | 8.00 | 60.00 |
| 362008/3-60° | Ø20x68 ØG.8 KSJ | brazed | 20.00 | 68.00 | 8.00 | 60.00 |
| 362008/4-60° | Ø20x68 ØG.8 KSJ | brazed | 20.00 | 68.00 | 8.00 | 60.00 |
| 362008/6-60° | Ø20x68 ØG.8 KSJ | brazed | 20.00 | 68.00 | 8.00 | 60.00 |
| 4633/3-60° | Ø3x40 ØG.3 KSJ | solid | 3.00 | 40.00 | 3.00 | 60.00 |
| 4633/4-60° | Ø3x40 ØG.3 KSJ | solid | 3.00 | 40.00 | 3.00 | 60.00 |
| 4633/6-60° | Ø3x40 ØG.3 KSJ | solid | 3.00 | 40.00 | 3.00 | 60.00 |
| 4643/3-60° | Ø4x38 ØG.3 KSJ | brazed | 4.00 | 38.00 | 3.00 | 60.00 |
| 4643/4-60° | Ø4x38 ØG.3 KSJ | brazed | 4.00 | 38.00 | 3.00 | 60.00 |
| 4643/6-60° | Ø4x38 ØG.3 KSJ | brazed | 4.00 | 38.00 | 3.00 | 60.00 |
| 4653/3-60° | Ø5x39 ØG.3 KSJ | brazed | 5.00 | 39.00 | 3.00 | 60.00 |
| 4653/4-60° | Ø5x39 ØG.3 KSJ | brazed | 5.00 | 39.00 | 3.00 | 60.00 |
| 4653/6-60° | Ø5x39 ØG.3 KSJ | brazed | 5.00 | 39.00 | 3.00 | 60.00 |
| 4663/3-60° | Ø6x40 ØG.3 KSJ | brazed | 6.00 | 40.00 | 3.00 | 60.00 |
| 4663/4-60° | Ø6x40 ØG.3 KSJ | brazed | 6.00 | 40.00 | 3.00 | 60.00 |
| 4663/6-60° | Ø6x40 ØG.3 KSJ | brazed | 6.00 | 40.00 | 3.00 | 60.00 |
