WKN/ST - Tronco-Conica con Tagliente Frontale
La lima rotativa Forma WKN-ST mantiene la geometria tronco-conica del modello WKN integrando il tagliente frontale. Questa configurazione consente di affondare direttamente nel materiale per poi sagomare sottosquadri e profili interni, garantendo la massima efficienza in spazi ristretti.
Tagliente Tipo (Descrizione Taglienti e Materiali)
Composizione: codice/tagliente (esempio: 4933/4ST)
* Nota: I taglienti tipo /2 e /5 sono fornibili su richiesta con minimo d'ordine.
Codice: 39-ST
Codice: 39-ST
Idoneo per
P
Acciaio Generico
M
Acciaio inossidabile
N
Alluminio e Leghe di alluminio
N
Rame e Leghe di Rame
K
Ghisa
H
Acciai Temprati
S
Superleghe resistenti al calore

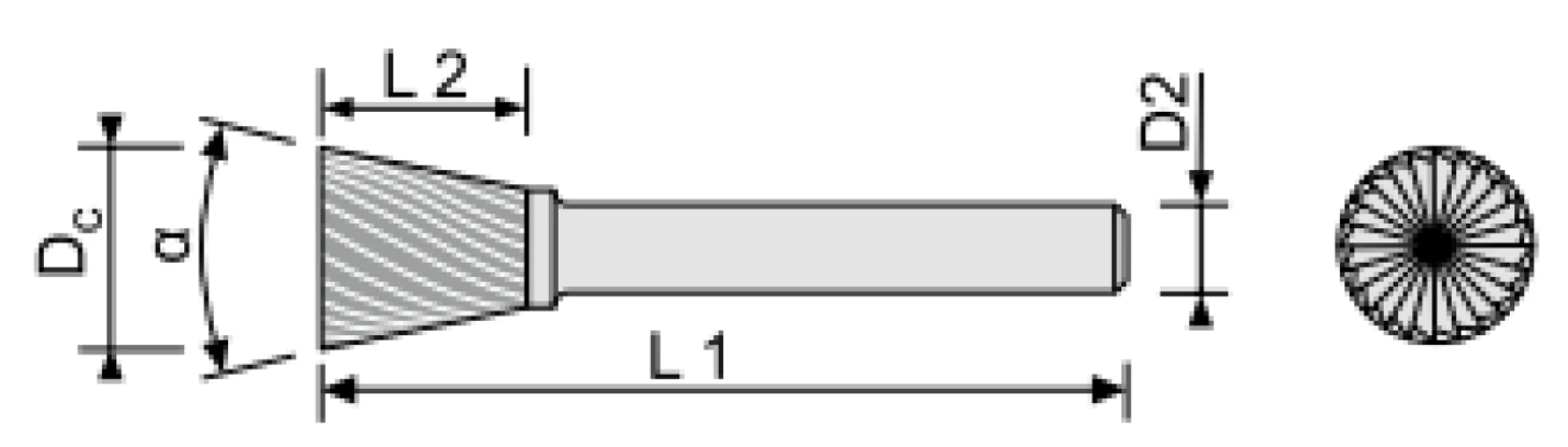

DC
OAL / L1
APMX / L2
| Cod. articolo | Descr. articlo | Tipologia | DC | OAL / L1 | DCON / D2 | APMX / L2 | α |
|---|---|---|---|---|---|---|---|
| 390406/1ST | Ø4x7x50 ØG.6 WKN-ST | solid | 4.00 | 50.00 | 6.00 | 7.00 | 10.00 |
| 390406/3ST | Ø4x7x50 ØG.6 WKN-ST | solid | 4.00 | 50.00 | 6.00 | 7.00 | 10.00 |
| 390406/4ST | Ø4x7x50 ØG.6 WKN-ST | solid | 4.00 | 50.00 | 6.00 | 7.00 | 10.00 |
| 390406/6ST | Ø4x7x50 ØG.6 WKN-ST | solid | 4.00 | 50.00 | 6.00 | 7.00 | 10.00 |
| 390606/1ST | Ø6x7x50 ØG.6 WKN-ST | solid | 6.00 | 50.00 | 6.00 | 7.00 | 10.00 |
| 390606/3ST | Ø6x7x50 ØG.6 WKN-ST | solid | 6.00 | 50.00 | 6.00 | 7.00 | 10.00 |
| 390606/4ST | Ø6x7x50 ØG.6 WKN-ST | solid | 6.00 | 50.00 | 6.00 | 7.00 | 10.00 |
| 390606/6ST | Ø6x7x50 ØG.6 WKN-ST | solid | 6.00 | 50.00 | 6.00 | 7.00 | 10.00 |
| 390806/1ST | Ø8x8x53 ØG.6 WKN-ST | brazed | 8.00 | 53.00 | 6.00 | 8.00 | 10.00 |
| 390806/3ST | Ø8x8x53 ØG.6 WKN-ST | brazed | 8.00 | 53.00 | 6.00 | 8.00 | 10.00 |
| 390806/4ST | Ø8x8x53 ØG.6 WKN-ST | brazed | 8.00 | 53.00 | 6.00 | 8.00 | 10.00 |
| 390806/6ST | Ø8x8x53 ØG.6 WKN-ST | brazed | 8.00 | 53.00 | 6.00 | 8.00 | 10.00 |
| 391006/1ST | Ø10x13x58 ØG.6 WKN-ST | brazed | 10.00 | 55.00 | 6.00 | 13.00 | 10.00 |
| 391006/3ST | Ø10x13x58 ØG.6 WKN-ST | brazed | 10.00 | 55.00 | 6.00 | 13.00 | 10.00 |
| 391006/4ST | Ø10x13x58 ØG.6 WKN-ST | brazed | 10.00 | 55.00 | 6.00 | 13.00 | 10.00 |
| 391006/6ST | Ø10x13x58 ØG.6 WKN-ST | brazed | 10.00 | 55.00 | 6.00 | 13.00 | 10.00 |
| 391206/1ST | Ø12x13x58 ØG.6 WKN-ST | brazed | 12.00 | 57.00 | 6.00 | 13.00 | 20.00 |
| 391206/3ST | Ø12x13x58 ØG.6 WKN-ST | brazed | 12.00 | 57.00 | 6.00 | 13.00 | 20.00 |
| 391206/4ST | Ø12x13x58 ØG.6 WKN-ST | brazed | 12.00 | 57.00 | 6.00 | 13.00 | 20.00 |
| 391206/6ST | Ø12x13x58 ØG.6 WKN-ST | brazed | 12.00 | 57.00 | 6.00 | 13.00 | 20.00 |
| 391606/1ST | Ø16x13x58 ØG.6 WKN-ST | brazed | 16.00 | 61.00 | 6.00 | 13.00 | 20.00 |
| 391606/3ST | Ø16x13x58 ØG.6 WKN-ST | brazed | 16.00 | 61.00 | 6.00 | 13.00 | 20.00 |
| 391606/4ST | Ø16x13x58 ØG.6 WKN-ST | brazed | 16.00 | 61.00 | 6.00 | 13.00 | 20.00 |
| 391606/6ST | Ø16x13x58 ØG.6 WKN-ST | brazed | 16.00 | 61.00 | 6.00 | 13.00 | 20.00 |
| 392006/1ST | Ø20x13x58 ØG.6 WKN-ST | brazed | 20.00 | 65.00 | 6.00 | 13.00 | 30.00 |
| 392006/3ST | Ø20x13x58 ØG.6 WKN-ST | brazed | 20.00 | 65.00 | 6.00 | 13.00 | 30.00 |
| 392006/4ST | Ø20x13x58 ØG.6 WKN-ST | brazed | 20.00 | 65.00 | 6.00 | 13.00 | 30.00 |
| 392006/6ST | Ø20x13x58 ØG.6 WKN-ST | brazed | 20.00 | 65.00 | 6.00 | 13.00 | 30.00 |
| 392008/1ST | Ø20x13x58 ØG.8 WKN-ST | brazed | 20.00 | 65.00 | 8.00 | 13.00 | 30.00 |
| 392008/3ST | Ø20x13x58 ØG.8 WKN-ST | brazed | 20.00 | 65.00 | 8.00 | 13.00 | 30.00 |
| 392008/4ST | Ø20x13x58 ØG.8 WKN-ST | brazed | 20.00 | 65.00 | 8.00 | 13.00 | 30.00 |
| 392008/6ST | Ø20x13x58 ØG.8 WKN-ST | brazed | 20.00 | 65.00 | 8.00 | 13.00 | 30.00 |
| 4933/3ST | Ø3x7x40 ØG.3 WKN-ST | solid | 3.00 | 40.00 | 3.00 | 7.00 | 10.00 |
| 4933/4ST | Ø3x7x40 ØG.3 WKN-ST | solid | 3.00 | 40.00 | 3.00 | 7.00 | 10.00 |
| 4933/6ST | Ø3x7x40 ØG.3 WKN-ST | solid | 3.00 | 40.00 | 3.00 | 7.00 | 10.00 |
| 4943/3ST | Ø4x7x42 ØG.3 WKN-ST | brazed | 4.00 | 42.00 | 3.00 | 7.00 | 10.00 |
| 4943/4ST | Ø4x7x42 ØG.3 WKN-ST | brazed | 4.00 | 42.00 | 3.00 | 7.00 | 10.00 |
| 4943/6ST | Ø4x7x42 ØG.3 WKN-ST | brazed | 4.00 | 42.00 | 3.00 | 7.00 | 10.00 |
| 4953/3ST | Ø5x7x42 ØG.3 WKN-ST | brazed | 5.00 | 42.00 | 3.00 | 7.00 | 10.00 |
| 4953/4ST | Ø5x7x42 ØG.3 WKN-ST | brazed | 5.00 | 42.00 | 3.00 | 7.00 | 10.00 |
| 4953/6ST | Ø5x7x42 ØG.3 WKN-ST | brazed | 5.00 | 42.00 | 3.00 | 7.00 | 10.00 |
| 4963/3ST | Ø6x7x42 ØG.3 WKN-ST | brazed | 6.00 | 42.00 | 3.00 | 7.00 | 10.00 |
| 4963/4ST | Ø6x7x42 ØG.3 WKN-ST | brazed | 6.00 | 42.00 | 3.00 | 7.00 | 10.00 |
| 4963/6ST | Ø6x7x42 ØG.3 WKN-ST | brazed | 6.00 | 42.00 | 3.00 | 7.00 | 10.00 |
