WRC - Cilindrica a Testa Raggiata
La lima rotativa Forma WRC (cilindrica a testa raggiata) combina la capacità di spianatura del corpo cilindrico con la versatilità della testa semisferica. Questa geometria la rende uno degli utensili più diffusi per sbavare, rifinire contorni e raccordare angoli.
La transizione fluida tra il fianco e la punta bombata permette di lavorare agevolmente in cave e profili curvi, evitando solchi o spigoli vivi sul pezzo.
Tagliente Tipo (Descrizione Taglienti e Materiali)
Composizione: codice/tagliente (esempio: 4133/4)
* Nota: I taglienti tipo /2 e /5 sono fornibili su richiesta con minimo d'ordine.
Codice: 31
Codice: 31
Idoneo per
P
Acciaio Generico
M
Acciaio inossidabile
N
Alluminio e Leghe di alluminio
N
Rame e Leghe di Rame
K
Ghisa
H
Acciai Temprati
S
Superleghe resistenti al calore

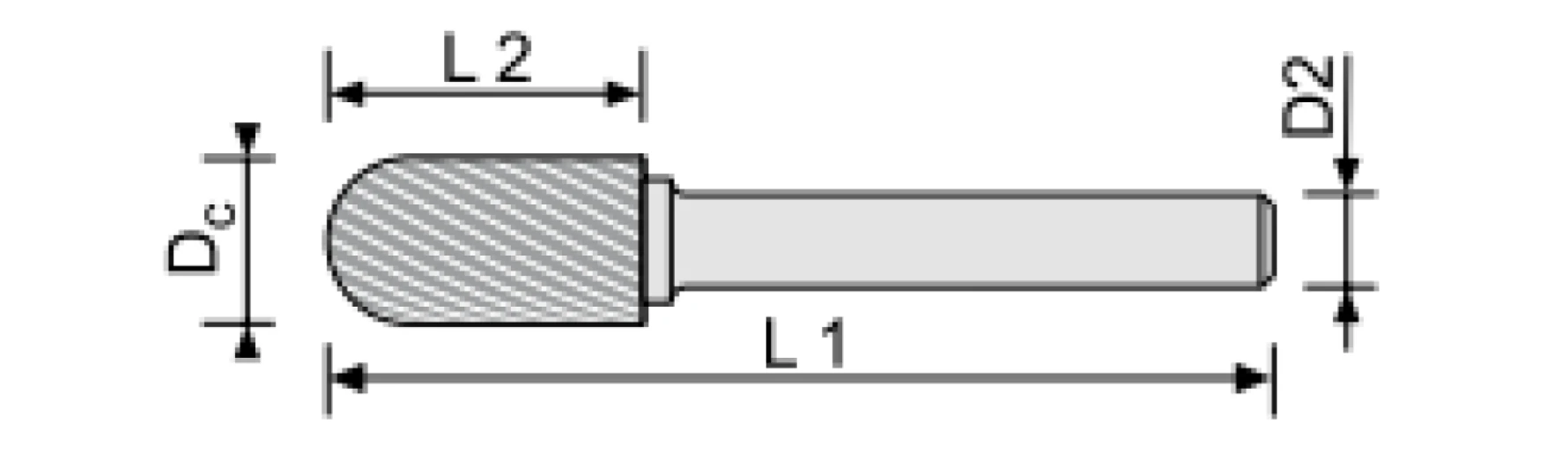

DC
OAL / L1
APMX / L2
| Cod. articolo | Descr. articlo | Tipologia | DC | OAL / L1 | DCON / D2 | APMX / L2 |
|---|---|---|---|---|---|---|
| 310406/1 | Ø4x13x50 ØG.6 WRC | solid | 4.00 | 50.00 | 6.00 | 13.00 |
| 310406/3 | Ø4x13x50 ØG.6 WRC | solid | 4.00 | 50.00 | 6.00 | 13.00 |
| 310406/4 | Ø4x13x50 ØG.6 WRC | solid | 4.00 | 50.00 | 6.00 | 13.00 |
| 310406/6 | Ø4x13x50 ØG.6 WRC | solid | 4.00 | 50.00 | 6.00 | 14.00 |
| 310606/1 | Ø6x16x50 ØG.6 WRC | solid | 6.00 | 50.00 | 6.00 | 16.00 |
| 310606/3 | Ø6x16x50 ØG.6 WRC | solid | 6.00 | 50.00 | 6.00 | 16.00 |
| 310606/3X100 | Ø6x18 ØG.6x100 WRC | brazed | 6.00 | 118.00 | 6.00 | 18.00 |
| 310606/3X150 | Ø6x18 ØG.6x150 WRC | brazed | 6.00 | 168.00 | 6.00 | 18.00 |
| 310606/3X300 | Ø6x18 ØG.6x300 WRC | brazed | 6.00 | 318.00 | 6.00 | 18.00 |
| 310606/4 | Ø6x16x50 ØG.6 WRC | solid | 6.00 | 50.00 | 6.00 | 16.00 |
| 310606/4X100 | Ø6x18 ØG.6x100 WRC | brazed | 6.00 | 118.00 | 6.00 | 18.00 |
| 310606/4X150 | Ø6x18 ØG.6x150 WRC | brazed | 6.00 | 168.00 | 6.00 | 18.00 |
| 310606/4X300 | Ø6x18 ØG.6x300 WRC | brazed | 6.00 | 318.00 | 6.00 | 18.00 |
| 310606/6 | Ø6x16x50 ØG.6 WRC | solid | 6.00 | 50.00 | 6.00 | 16.00 |
| 310606/6X100 | Ø6x18 ØG.6x100 WRC | brazed | 6.00 | 118.00 | 6.00 | 18.00 |
| 310606/6X150 | Ø6x18 ØG.6x150 WRC | brazed | 6.00 | 168.00 | 6.00 | 18.00 |
| 310606/6X300 | Ø6x18 ØG.6x300 WRC | brazed | 6.00 | 318.00 | 6.00 | 18.00 |
| 310806/1 | Ø8x20x65 ØG.6 WRC | brazed | 8.00 | 65.00 | 6.00 | 20.00 |
| 310806/3 | Ø8x20x65 ØG.6 WRC | brazed | 8.00 | 65.00 | 6.00 | 20.00 |
| 310806/3x100 | Ø8 ØG.6x100 WRC | brazed | 8.00 | 120.00 | 6.00 | 20.00 |
| 310806/3x150 | Ø8 ØG.6x150 WRC | brazed | 8.00 | 170.00 | 6.00 | 20.00 |
| 310806/3X300 | Ø8 ØG.6x300 WRC | brazed | 8.00 | 320.00 | 6.00 | 20.00 |
| 310806/4 | Ø8x20x65 ØG.6 WRC | brazed | 8.00 | 65.00 | 6.00 | 20.00 |
| 310806/4X100 | Ø8 ØG.6x100 WRC | brazed | 8.00 | 120.00 | 6.00 | 20.00 |
| 310806/4x150 | Ø8 ØG.6x150 WRC | brazed | 8.00 | 170.00 | 6.00 | 20.00 |
| 310806/4X300 | Ø8 ØG.6x300 WRC | brazed | 8.00 | 320.00 | 6.00 | 20.00 |
| 310806/6 | Ø8x20x65 ØG.6 WRC | brazed | 8.00 | 65.00 | 6.00 | 20.00 |
| 310806/6X100 | Ø8 ØG.6x100 WRC | brazed | 8.00 | 120.00 | 6.00 | 20.00 |
| 310806/6X150 | Ø8 ØG.6x150 WRC | brazed | 8.00 | 170.00 | 6.00 | 20.00 |
| 310806/6X300 | Ø8 ØG.6x300 WRC | brazed | 8.00 | 320.00 | 6.00 | 20.00 |
| 311006/1 | Ø10x20x65 ØG.6 WRC | brazed | 10.00 | 65.00 | 6.00 | 20.00 |
| 311006/3 | Ø10x20x65 ØG.6 WRC | brazed | 10.00 | 65.00 | 6.00 | 20.00 |
| 311006/3X100 | Ø10 ØG.6x100 WRC | brazed | 10.00 | 120.00 | 6.00 | 20.00 |
| 311006/3X150 | Ø10 ØG.6x150 WRC | brazed | 10.00 | 170.00 | 6.00 | 20.00 |
| 311006/3X300 | Ø10 ØG.6x300 WRC | brazed | 10.00 | 320.00 | 6.00 | 20.00 |
| 311006/4 | Ø10x20x65 ØG.6 WRC | brazed | 10.00 | 65.00 | 6.00 | 20.00 |
| 311006/4X100 | Ø10 ØG.6x100 WRC | brazed | 10.00 | 120.00 | 6.00 | 20.00 |
| 311006/4X150 | Ø10 ØG.6x150 WRC | brazed | 10.00 | 170.00 | 6.00 | 20.00 |
| 311006/4X300 | Ø10 ØG.6x300 WRC | brazed | 10.00 | 320.00 | 6.00 | 20.00 |
| 311006/6 | Ø10x20x65 ØG.6 WRC | brazed | 10.00 | 65.00 | 6.00 | 20.00 |
| 311006/6X100 | Ø10 ØG.6x100 WRC | brazed | 10.00 | 120.00 | 6.00 | 20.00 |
| 311006/6X150 | Ø10 ØG.6x150 WRC | brazed | 10.00 | 170.00 | 6.00 | 20.00 |
| 311006/6X300 | Ø10 ØG.6x300 WRC | brazed | 10.00 | 320.00 | 6.00 | 20.00 |
| 311206/1 | Ø12x25x70 ØG.6 WRC | brazed | 12.00 | 70.00 | 6.00 | 25.00 |
| 311206/3 | Ø12x25x70 ØG.6 WRC | brazed | 12.00 | 70.00 | 6.00 | 25.00 |
| 311206/3X100 | Ø12 ØG.6x100 WRC | brazed | 12.00 | 125.00 | 6.00 | 25.00 |
| 311206/3x150 | Ø12 ØG.6x150 WRC | brazed | 12.00 | 175.00 | 6.00 | 25.00 |
| 311206/3X300 | Ø12 ØG.6x300 WRC | brazed | 12.00 | 325.00 | 6.00 | 25.00 |
| 311206/4 | Ø12x25x70 ØG.6 WRC | brazed | 12.00 | 70.00 | 6.00 | 25.00 |
| 311206/4X100 | Ø12 ØG.6x100 WRC | brazed | 12.00 | 125.00 | 6.00 | 25.00 |
| 311206/4x150 | Ø12 ØG.6x150 WRC | brazed | 12.00 | 175.00 | 6.00 | 25.00 |
| 311206/4X300 | Ø12 ØG.6x300 WRC | brazed | 12.00 | 325.00 | 6.00 | 25.00 |
| 311206/6 | Ø12x25x70 ØG.6 WRC | brazed | 12.00 | 70.00 | 6.00 | 25.00 |
| 311206/6X100 | Ø12 ØG.6x100 WRC | brazed | 12.00 | 125.00 | 6.00 | 25.00 |
| 311206/6X150 | Ø12 ØG.6x150 WRC | brazed | 12.00 | 175.00 | 6.00 | 25.00 |
| 311206/6X300 | Ø12 ØG.6x300 WRC | brazed | 12.00 | 325.00 | 6.00 | 25.00 |
| 311208/3X100 | Ø12 ØG.8x100 WRC | brazed | 12.00 | 125.00 | 8.00 | 25.00 |
| 311208/3X150 | Ø12 ØG.8x150 WRC | brazed | 12.00 | 175.00 | 8.00 | 25.00 |
| 311208/3X300 | Ø12 ØG.8x300 WRC | brazed | 12.00 | 325.00 | 8.00 | 25.00 |
| 311208/4X100 | Ø12 ØG.8x100 WRC | brazed | 12.00 | 125.00 | 8.00 | 25.00 |
| 311208/4X150 | Ø12 ØG.8x150 WRC | brazed | 12.00 | 175.00 | 8.00 | 25.00 |
| 311208/4X300 | Ø12 ØG.8x300 WRC | brazed | 12.00 | 325.00 | 8.00 | 25.00 |
| 311606/1 | Ø16x25x70 ØG.6 WRC | brazed | 16.00 | 70.00 | 6.00 | 25.00 |
| 311606/3 | Ø16x25x70 ØG.6 WRC | brazed | 16.00 | 70.00 | 6.00 | 25.00 |
| 311606/3x100 | Ø16 ØG.6x100 WRC | brazed | 16.00 | 125.00 | 6.00 | 25.00 |
| 311606/3x150 | Ø16 ØG.6x150 WRC | brazed | 16.00 | 175.00 | 6.00 | 25.00 |
| 311606/3X300 | Ø16 ØG.6x300 WRC | brazed | 16.00 | 325.00 | 6.00 | 25.00 |
| 311606/4 | Ø16x25x70 ØG.6 WRC | brazed | 16.00 | 70.00 | 6.00 | 25.00 |
| 311606/4x100 | Ø16 ØG.6x100 WRC | brazed | 16.00 | 125.00 | 6.00 | 25.00 |
| 311606/4x150 | Ø16 ØG.6x150 WRC | brazed | 16.00 | 175.00 | 6.00 | 25.00 |
| 311606/4X300 | Ø16 ØG.6x300 WRC | brazed | 16.00 | 325.00 | 6.00 | 25.00 |
| 311606/6 | Ø16x25x70 ØG.6 WRC | brazed | 16.00 | 70.00 | 6.00 | 25.00 |
| 311606/6X100 | Ø16 ØG.6x100 WRC | brazed | 16.00 | 125.00 | 6.00 | 25.00 |
| 311606/6x150 | Ø16 ØG.6x150 WRC | brazed | 16.00 | 175.00 | 6.00 | 25.00 |
| 311606/6X300 | Ø16 ØG.6x300 WRC | brazed | 16.00 | 325.00 | 6.00 | 25.00 |
| 311608/1 | Ø16x25x70 ØG.8 WRC | brazed | 16.00 | 70.00 | 8.00 | 25.00 |
| 311608/3 | Ø16x25x70 ØG.8 WRC | brazed | 16.00 | 70.00 | 8.00 | 25.00 |
| 311608/3X100 | Ø16 ØG.6x100 WRC | brazed | 16.00 | 125.00 | 8.00 | 25.00 |
| 311608/3x150 | Ø16 ØG.8x150 WRC | brazed | 16.00 | 175.00 | 8.00 | 25.00 |
| 311608/3X300 | Ø16 ØG.8x300 WRC | brazed | 16.00 | 325.00 | 8.00 | 25.00 |
| 311608/4 | Ø16x25x70 ØG.8 WRC | brazed | 16.00 | 70.00 | 8.00 | 25.00 |
| 311608/4x100 | Ø16 ØG.8x100 WRC | brazed | 16.00 | 125.00 | 8.00 | 25.00 |
| 311608/4x150 | Ø16 ØG.8x150 WRC | brazed | 16.00 | 175.00 | 8.00 | 25.00 |
| 311608/4X300 | Ø16 ØG.8x300 WRC | brazed | 16.00 | 325.00 | 8.00 | 25.00 |
| 311608/6 | Ø16x25x70 ØG.8 WRC | brazed | 16.00 | 70.00 | 8.00 | 25.00 |
| 311608/6x100 | Ø16 ØG.8x100 WRC | brazed | 16.00 | 125.00 | 8.00 | 25.00 |
| 311608/6x150 | Ø16 ØG.8x150 WRC | brazed | 16.00 | 175.00 | 8.00 | 25.00 |
| 311608/6X300 | Ø16 ØG.8x300 WRC | brazed | 16.00 | 325.00 | 8.00 | 25.00 |
| 312006/1 | Ø20x25x70 ØG.6 WRC | brazed | 20.00 | 70.00 | 6.00 | 25.00 |
| 312006/3 | Ø20x25x70 ØG.6 WRC | brazed | 20.00 | 70.00 | 6.00 | 25.00 |
| 312006/3X100 | Ø20 ØG.6x100 WRC | brazed | 20.00 | 125.00 | 6.00 | 25.00 |
| 312006/3x150 | Ø20 ØG.6x150 WRC | brazed | 20.00 | 175.00 | 6.00 | 25.00 |
| 312006/3X300 | Ø20 ØG.6x300 WRC | brazed | 20.00 | 325.00 | 6.00 | 25.00 |
| 312006/4 | Ø20x25x70 ØG.6 WRC | brazed | 20.00 | 70.00 | 6.00 | 25.00 |
| 312006/4x100 | Ø20 ØG.6x100 WRC | brazed | 20.00 | 125.00 | 6.00 | 25.00 |
| 312006/4x150 | Ø20 ØG.6x150 WRC | brazed | 20.00 | 175.00 | 6.00 | 25.00 |
| 312006/4X300 | Ø20 ØG.6x300 WRC | brazed | 20.00 | 325.00 | 6.00 | 25.00 |
| 312006/6 | Ø20x25x70 ØG.6 WRC | brazed | 20.00 | 70.00 | 6.00 | 25.00 |
| 312006/6x100 | Ø20 ØG.6x100 WRC | brazed | 20.00 | 125.00 | 6.00 | 25.00 |
| 312006/6x150 | Ø20 ØG.6x150 WRC | brazed | 20.00 | 175.00 | 6.00 | 25.00 |
| 312006/6X300 | Ø20 ØG.6x300 WRC | brazed | 20.00 | 325.00 | 6.00 | 25.00 |
| 312008/1 | Ø20x25x70 ØG.8 WRC | brazed | 20.00 | 70.00 | 8.00 | 25.00 |
| 312008/3 | Ø20x25x70 ØG.8 WRC | brazed | 20.00 | 70.00 | 8.00 | 25.00 |
| 312008/3x100 | Ø20 ØG.8x100 WRC | brazed | 20.00 | 125.00 | 8.00 | 25.00 |
| 312008/3x150 | Ø20 ØG.8x150 WRC | brazed | 20.00 | 175.00 | 8.00 | 25.00 |
| 312008/3X300 | Ø20 ØG.8x300 WRC | brazed | 20.00 | 325.00 | 8.00 | 25.00 |
| 312008/4 | Ø20x25x70 ØG.8 WRC | brazed | 20.00 | 70.00 | 8.00 | 25.00 |
| 312008/4x100 | Ø20 ØG.8x100 WRC | brazed | 20.00 | 125.00 | 8.00 | 25.00 |
| 312008/4x150 | Ø20 ØG.8x150 WRC | brazed | 20.00 | 175.00 | 8.00 | 25.00 |
| 312008/4X300 | Ø20 ØG.8x300 WRC | brazed | 20.00 | 325.00 | 8.00 | 25.00 |
| 312008/6 | Ø20x25x70 ØG.8 WRC | brazed | 20.00 | 70.00 | 8.00 | 25.00 |
| 312008/6x100 | Ø20 ØG.8x100 WRC | brazed | 20.00 | 125.00 | 8.00 | 25.00 |
| 312008/6x150 | Ø20 ØG.8x150 WRC | brazed | 20.00 | 175.00 | 8.00 | 25.00 |
| 312008/6X300 | Ø20 ØG.8x300 WRC | brazed | 20.00 | 325.00 | 8.00 | 25.00 |
| 4115/3 | Ø1.5x8x40 ØG.3 WRC | solid | 1.50 | 40.00 | 3.00 | 8.00 |
| 4115/4 | Ø1.5x8x40 ØG.3 WRC | solid | 1.50 | 40.00 | 3.00 | 8.00 |
| 4115/6 | Ø1.5x8x40 ØG.3 WRC | solid | 1.50 | 40.00 | 3.00 | 8.00 |
| 4120/3 | Ø2x10x40 ØG.3 WRC | solid | 2.00 | 40.00 | 3.00 | 10.00 |
| 4120/4 | Ø2x10x40 ØG.3 WRC | solid | 2.00 | 40.00 | 3.00 | 10.00 |
| 4120/6 | Ø2x10x40 ØG.3 WRC | solid | 2.00 | 40.00 | 3.00 | 10.00 |
| 4125/3 | Ø2.5x12x40 ØG.3 WRC | solid | 2.50 | 40.00 | 3.00 | 12.00 |
| 4125/4 | Ø2.5x12x40 ØG.3 WRC | solid | 2.50 | 40.00 | 3.00 | 12.00 |
| 4125/6 | Ø2.5x12x40 ØG.3 WRC | solid | 2.50 | 40.00 | 3.00 | 12.00 |
| 4133/3 | Ø3x13x40 ØG.3 WRC | solid | 3.00 | 40.00 | 3.00 | 13.00 |
| 4133/4 | Ø3x13x40 ØG.3 WRC | solid | 3.00 | 40.00 | 3.00 | 13.00 |
| 4133/6 | Ø3x13x40 ØG.3 WRC | solid | 3.00 | 40.00 | 3.00 | 13.00 |
| 4143/3 | Ø4x10x45 ØG.3 WRC | brazed | 4.00 | 45.00 | 3.00 | 10.00 |
| 4143/4 | Ø4x10x45 ØG.3 WRC | brazed | 4.00 | 45.00 | 3.00 | 10.00 |
| 4143/6 | Ø4x10x45 ØG.3 WRC | brazed | 4.00 | 45.00 | 3.00 | 10.00 |
| 4153/3 | Ø5x12x47 ØG.3 WRC | brazed | 5.00 | 47.00 | 3.00 | 12.00 |
| 4153/4 | Ø5x12x47 ØG.3 WRC | brazed | 5.00 | 47.00 | 3.00 | 12.00 |
| 4153/6 | Ø5x12x47 ØG.3 WRC | brazed | 5.00 | 47.00 | 3.00 | 12.00 |
| 4163/3 | Ø6x13x48 ØG.3 WRC | brazed | 6.00 | 48.00 | 3.00 | 13.00 |
| 4163/4 | Ø6x13x48 ØG.3 WRC | brazed | 6.00 | 48.00 | 3.00 | 13.00 |
| 4163/6 | Ø6x13x48 ØG.3 WRC | brazed | 6.00 | 48.00 | 3.00 | 13.00 |
