ZENIT is the line of high-performance universal end mills designed for those seeking maximum efficiency in the most demanding machining operations.
The combination of variable pitch helices and reinforced cutting edges guarantees smooth, vibration-free material removal, ensuring high depths of cut and flawless surface finishes.
The innovative heart of the system lies in the synergy between controlled edge honing and the advanced HIPIMS Cer-SA coating, which eliminates the risk of micro-chipping and drastically reduces friction for uncompromising tool life.
Shank Options:
• HA - Standard cylindrical (740.)
• HB - Weldon (740W.)

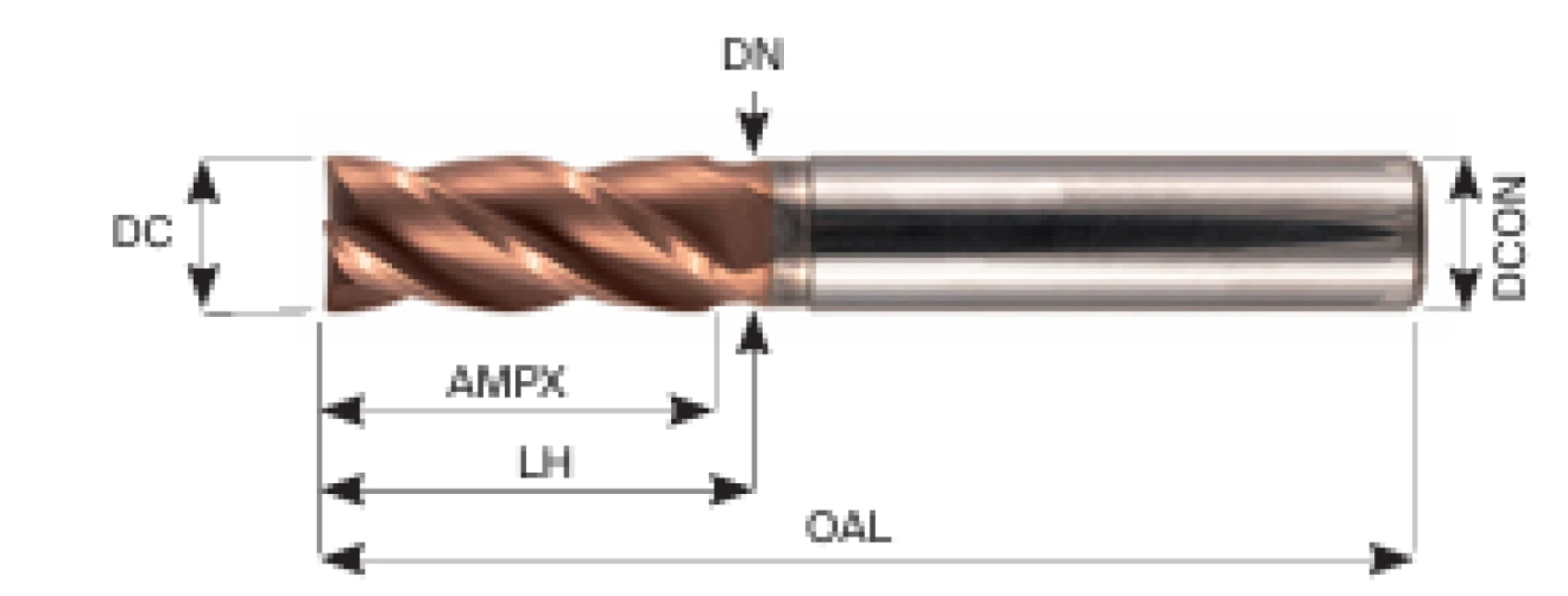

| Item code | Type | DC | OAL / L1 | DCON / D2 | APMX / L2 | LH | DN |
|---|---|---|---|---|---|---|---|
| 740.030060650SA | coated | 3.00 | 50.00 | 6.00 | 6.00 | 9.00 | 2.90 |
| 740.030060957SA | coated | 3.00 | 57.00 | 6.00 | 9.00 | 14.00 | 2.90 |
| 740.040060954SA | coated | 4.00 | 54.00 | 6.00 | 9.00 | 12.00 | 3.80 |
| 740.040061257SA | coated | 4.00 | 57.00 | 6.00 | 12.00 | 18.00 | 3.80 |
| 740.050061054SA | coated | 5.00 | 54.00 | 6.00 | 10.00 | 16.00 | 4.80 |
| 740.050061457SA | coated | 5.00 | 57.00 | 6.00 | 14.00 | 19.00 | 4.80 |
| 740.060061154SA | coated | 6.00 | 54.00 | 6.00 | 11.00 | 16.00 | 5.80 |
| 740.060061457SA | coated | 6.00 | 57.00 | 6.00 | 14.00 | 20.00 | 5.80 |
| 740.080081454SA | coated | 8.00 | 54.00 | 8.00 | 14.00 | 20.00 | 7.70 |
| 740.080082163SA | coated | 8.00 | 63.00 | 8.00 | 21.00 | 25.00 | 7.70 |
| 740.100101766SA | coated | 10.00 | 66.00 | 10.00 | 17.00 | 24.00 | 9.50 |
| 740.100102472SA | coated | 10.00 | 72.00 | 10.00 | 24.00 | 30.00 | 9.50 |
| 740.120122073SA | coated | 12.00 | 73.00 | 12.00 | 20.00 | 26.00 | 11.50 |
| 740.120122883SA | coated | 12.00 | 83.00 | 12.00 | 28.00 | 35.00 | 11.50 |
| 740.140142883SA | coated | 14.00 | 83.00 | 14.00 | 28.00 | 35.00 | 13.50 |
| 740.160162682SA | coated | 16.00 | 82.00 | 16.00 | 26.00 | 32.00 | 15.50 |
| 740.160163692SA | coated | 16.00 | 92.00 | 16.00 | 36.00 | 40.00 | 15.50 |
| 740.180182984SA | coated | 18.00 | 84.00 | 18.00 | 29.00 | 34.00 | 17.50 |
| 740.1801836100SA | coated | 18.00 | 100.00 | 18.00 | 36.00 | 50.00 | 17.50 |
| 740.200203292SA | coated | 20.00 | 92.00 | 20.00 | 32.00 | 40.00 | 19.50 |
| 740.2002042104SA | coated | 20.00 | 102.00 | 20.00 | 42.00 | 50.00 | 19.50 |
| 740.2502548125SA | coated | 25.00 | 125.00 | 25.00 | 48.00 | 65.00 | 24.20 |
| 740W.030060650SA | coated | 3.00 | 50.00 | 6.00 | 6.00 | 9.00 | 2.90 |
| 740W.030060957SA | coated | 3.00 | 57.00 | 6.00 | 9.00 | 14.00 | 2.90 |
| 740W.040060954SA | coated | 4.00 | 54.00 | 6.00 | 9.00 | 12.00 | 3.80 |
| 740W.040061257SA | coated | 4.00 | 57.00 | 6.00 | 12.00 | 18.00 | 3.80 |
| 740W.050061054SA | coated | 5.00 | 54.00 | 6.00 | 10.00 | 16.00 | 4.80 |
| 740W.050061457SA | coated | 5.00 | 57.00 | 6.00 | 14.00 | 19.00 | 4.80 |
| 740W.060061154SA | coated | 6.00 | 54.00 | 6.00 | 11.00 | 16.00 | 5.80 |
| 740W.060061457SA | coated | 6.00 | 57.00 | 6.00 | 14.00 | 20.00 | 5.80 |
| 740W.080081454SA | coated | 8.00 | 54.00 | 8.00 | 14.00 | 20.00 | 7.70 |
| 740W.080082163SA | coated | 8.00 | 63.00 | 8.00 | 21.00 | 25.00 | 7.70 |
| 740W.100101766SA | coated | 10.00 | 66.00 | 10.00 | 17.00 | 24.00 | 9.50 |
| 740W.100102472SA | coated | 10.00 | 72.00 | 10.00 | 24.00 | 30.00 | 9.50 |
| 740W.120122073SA | coated | 12.00 | 73.00 | 12.00 | 20.00 | 26.00 | 11.50 |
| 740W.120122883SA | coated | 12.00 | 83.00 | 12.00 | 28.00 | 35.00 | 11.50 |
| 740W.140142883SA | coated | 14.00 | 83.00 | 14.00 | 28.00 | 35.00 | 13.50 |
| 740W.160162682SA | coated | 16.00 | 82.00 | 16.00 | 26.00 | 32.00 | 15.50 |
| 740W.160163692SA | coated | 16.00 | 92.00 | 16.00 | 36.00 | 40.00 | 15.50 |
| 740W.180182984SA | coated | 18.00 | 84.00 | 18.00 | 29.00 | 34.00 | 17.50 |
| 740W.1801836100SA | coated | 18.00 | 100.00 | 18.00 | 36.00 | 50.00 | 17.50 |
| 740W.200203292SA | coated | 20.00 | 92.00 | 20.00 | 32.00 | 40.00 | 19.50 |
| 740W.2002042104SA | coated | 20.00 | 102.00 | 20.00 | 42.00 | 50.00 | 19.50 |
| 740W.2502548125SA | coated | 25.00 | 125.00 | 25.00 | 48.00 | 65.00 | 24.20 |
Edge honing is a controlled process that increases the strength of the cutting edge, reducing the risk of chipping and mechanical damage, particularly in the most demanding milling operations and interrupted cuts. By improving edge stability without compromising cutting performance, edge honing increases process reliability, extends tool life, and ensures consistent performance even in the most challenging machining conditions.
Tolleranze / Tolerances
| DC | h10 |
| DCON | h5 |
