Tolleranze / Tolerances
| DC | h10 |
| APMX | 0/+2 |
| OAL | 0/+2 |
| DCON | h6 |
Codice: 102
Codice: 102
Idoneo per
O
Polimeri Termoindurenti

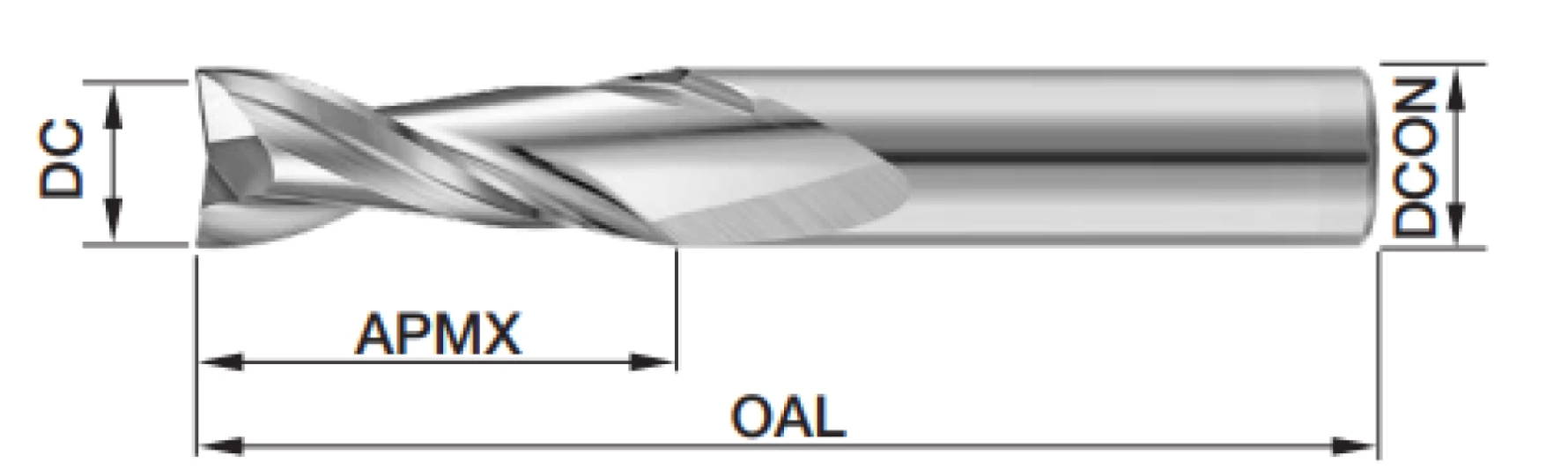

DC
OAL / L1
APMX / L2
| Cod. articolo | DC | OAL / L1 | DCON / D2 | APMX / L2 |
|---|---|---|---|---|
| 102.020030850 | 2.00 | 50.00 | 3.00 | 8.00 |
| 102.020060650 | 2.00 | 50.00 | 6.00 | 6.00 |
| 102.030031240 | 3.00 | 40.00 | 3.00 | 12.00 |
| 102.030060750 | 3.00 | 50.00 | 6.00 | 7.00 |
| 102.030061250 | 3.00 | 50.00 | 6.00 | 12.00 |
| 102.040041440 | 4.00 | 40.00 | 4.00 | 14.00 |
| 102.040060950 | 4.00 | 50.00 | 6.00 | 9.00 |
| 102.040061450 | 4.00 | 50.00 | 6.00 | 14.00 |
| 102.050051650 | 5.00 | 50.00 | 5.00 | 16.00 |
| 102.050061150 | 5.00 | 50.00 | 6.00 | 11.00 |
| 102.060061350 | 6.00 | 50.00 | 6.00 | 13.00 |
| 102.060061850 | 6.00 | 50.00 | 6.00 | 18.00 |
| 102.060062560 | 6.00 | 60.00 | 6.00 | 25.00 |
| 102.060063575 | 6.00 | 75.00 | 6.00 | 35.00 |
| 102.080082063 | 8.00 | 63.00 | 8.00 | 20.00 |
| 102.080083075 | 8.00 | 75.00 | 8.00 | 30.00 |
| 102.0800840100 | 8.00 | 100.00 | 8.00 | 40.00 |
| 102.100102572 | 10.00 | 72.00 | 10.00 | 25.00 |
| 102.120123083 | 12.00 | 83.00 | 12.00 | 30.00 |
| 102.160163592 | 16.00 | 92.00 | 16.00 | 35.00 |
| 102.2002045104 | 20.00 | 104.00 | 20.00 | 45.00 |
